High Accuracy Laser Diameter Measuring Gauge Model LDM-20

High Accuracy Laser Diameter Measuring Gauge Model LDM-20

1.  Technical parameters

2.  The performance indicators
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V plus/minus 15%  50 - 60Hz
Operating temperature: -10 ~ 40 Degrees Celsius
Humidity: <85% RH
Work mode: Continuous
Power consumption: <30W
Dimensions:  Gauge head: 500mm * 120mm * 500mm

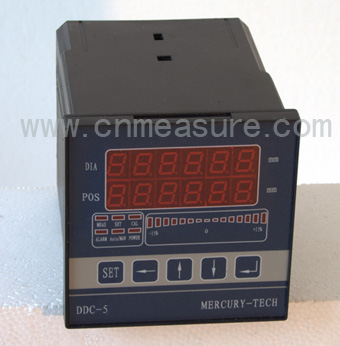

                                       Photo:  DDC-5 Display Controller

3.  Display Controller  (Model:  DDC-5)
1). It be used to remote display and control.
2). Applicable to DC motors, VVVF motor.
3). The controller can control the speed of extruder or the tractor according to the diameter tolerance.
4). Can simultaneously measure the outside diameter, roundness, runout, including oval diameter. It can be used for shaft testing, the detection of rubber roller, honeycomb ceramic detection.

Signal distance:  More than 500m
Output voltage: plus/minus 10V
With RS485 It can connect to PLC industry controlling computer
The PROFIBUS-DP or MODBUS
Can be selected.
External dimensions: 100mm * 100mm * 120mm (Model:DDC-5)
Installation hole size: 90mm * 90mm (Model: DDC-5)

CE Certifications
