Rubber Roller Measuring Detector LDM-210S

LDM-210S Rubber Roller Measuring Detector
Axis Diameter Measuring Gauge

LDM-210S Rubber Roller Measuring Detector uses laser scanning principle to realize non-contacting and high-precision measurement and control. It can be used for matal shaft, rubber roller, magnetic roller to show the diameter, non-roundness and runout.

1. Technical parameters

Model	Measuring Range	Resolution	Accuracy
LDM-210S	0.2-205mm	0.001	0.01 mm

2. The performance indicators
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V plus/minus 15% 50 - 60Hz
Operating temperature: -10 ~ 40 Degrees Celsius
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W

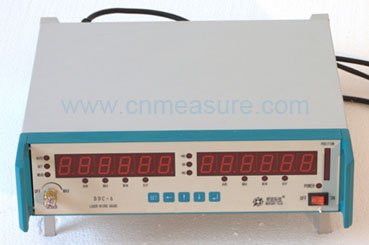

Photo: DDC-6 Display Controller

3. Display Controller (Model:DDC-6)
1). It be used to remote display and control.
2). Can simultaneously measure the outside diameter, roundness, runout, including oval diameter. It can be used for shaft testing, the detection of rubber roller, honeycomb ceramic detection.
Signal distance: more than 500m
Output voltage: plus/minus 10V
External dimensions: 350mm * 350mm * 100mm (Model:DDC-6)
