Wheeled Length Measuring Device CCDL-30L

Wheeled Length Measuring Device Model CCDL-30L
Length measurement, Wire, Cable meter counter gauge

Technical parameters:
Operating voltage: ~ 220V plus/minus 15%    50 - 60Hz
Power consumption: <10W
Operating temperature: -10 ~ 40 Degrees Celsius
The model CCDL-30L is used for measuring  the length of cable ( external diameter between 1mm -30mm )

Accuracy: 0.2%
External dimensions: Measuring head 350mm * 150mm * 300mm
Stand adjust height : 200mm-1450mm

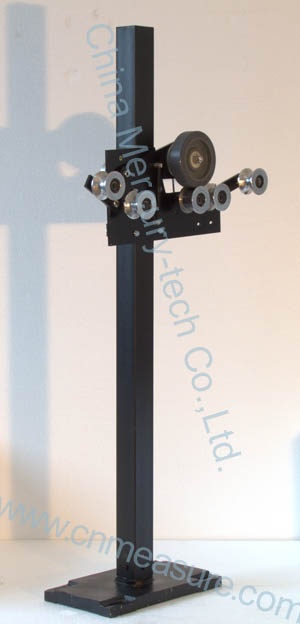

                         Photo 1: CCDL-30L Measuring unit (with Stand)

Electronic Counter
Maximum count: 10Km
Measurable length: 0-99999.99m
Cumulative length: 0-9999999m
Calibrate measuring precision.
Protection data when Power Down.
Pre-setting the length.
Pre-setting alarm length.
External dimensions: 160mm * 80mm * 170mm
Installation hole size: 152mm * 76mm

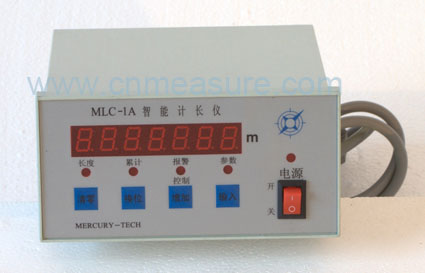

                                             Photo 2:  Electronic Counter

Package Size:  19 cm * 24 cm * 48 cm ( Measuring unit volume )
                            7 cm * 8 cm * 145 cm  (Stand Volume )
Packaging Weight:  21KG
