LDM-25XY LDM-50XY Dual Axis Laser Diameter Micrometer

LDM25XY LDM-50XY Dual Axis laser diameter micrometer, can Online measurement and control.

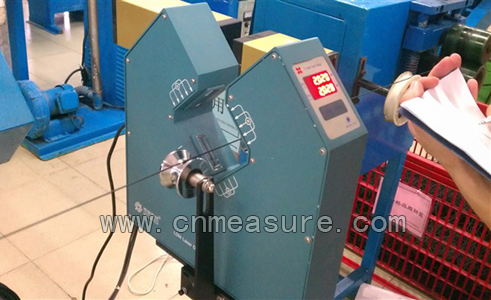

Dual Axis laser diameter micrometer is the high-accuracy installment that uses the laser scan to carry
 is the high-accuracy survey installment that uses the laser scan to carry on the no-contacts on-line survey. It (namely X axis and Y axis) simultaneously measure the diameter in two directions.
Applicable to metal wires, glass, pipes, wire and cable, etc. The diameter of the measurement and control. Bi-directional measurement, the average shows that can simultaneously show the wire, pipe diameter, roundness.

1. Technical parameters


2. The performance indicators
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V plus/minus 15%  50 - 60Hz
Operating temperature: -10〜40 Degrees Celsius
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W
Dimensions:  LDM25XY/LDM50XY Gauge head: 400mm * 400mm * 80mm
Stand: 350mm * 200mm * (700-1000)mm
Height of central measuring position: 900-1200mm


3. The Device with the following Characteristics
1. Can be connected PLC, industrial computer.
2. RROFIBUS-DP can be allocated and MODBUS converter and PLC, IPC Connect.
3. Can be equipped remote controller DDC-3, DDC-5, on the extruder and automatic feedback control to control the tolerance, improve product quality, reducing consumption.

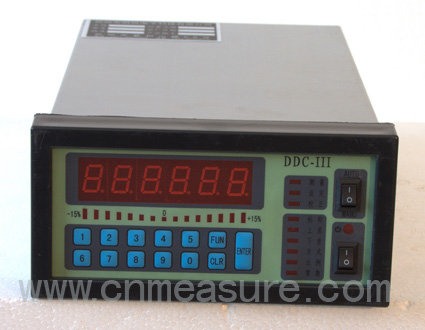

Photo 1:  DDC-3 Display Controller

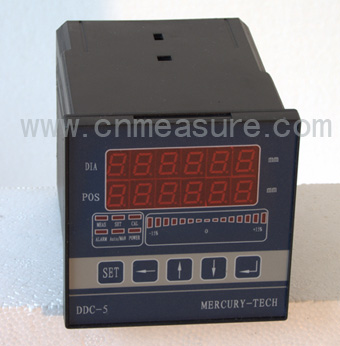

Photo 2:  DDC-5 Display Controller

External dimensions:164mm * 85mm * 280mm (Model:DDC-3)
                                    100mm *100mm *120mm (Model:DDC-5)
Installation hole size: 152mm * 76mm (Model: DDC-3)
                                     90mm * 90mm (Model: DDC-5)

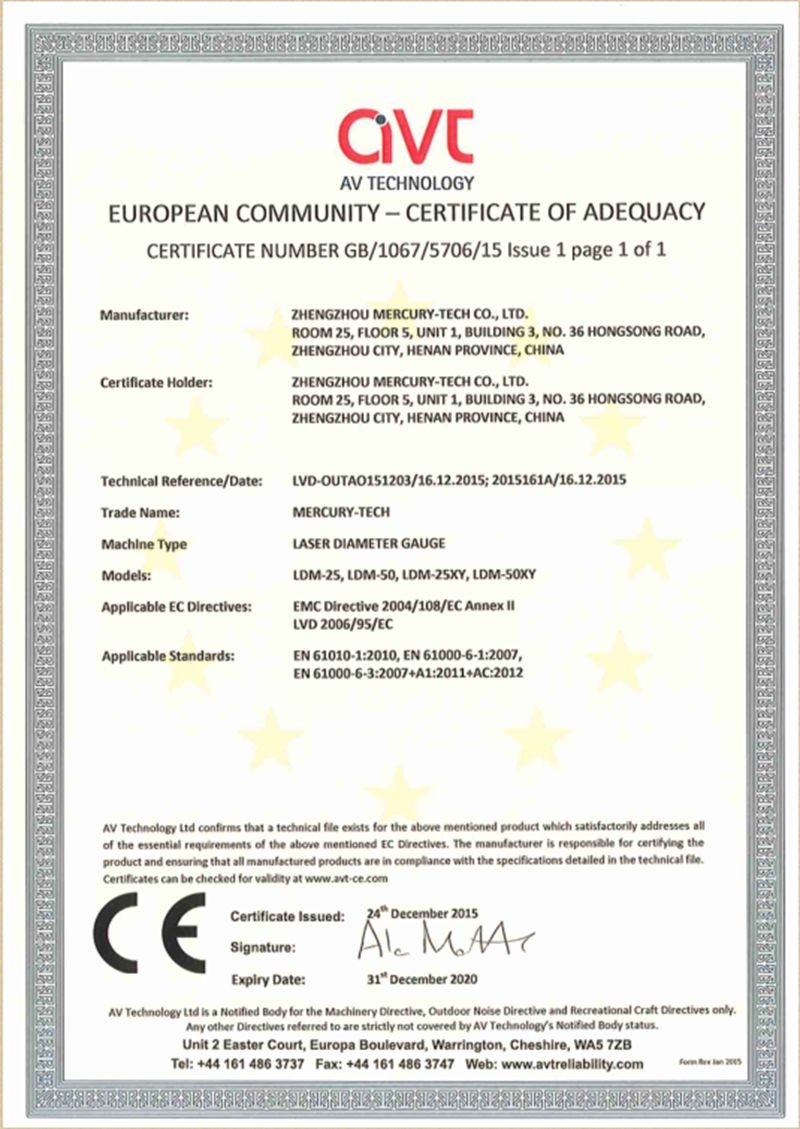

CE Certifications
