Model LDM25, Non-contact measurement Laser diameter control gauge

Non-contact measurement Laser diameter control gauge
Specifications
1). Non-contact measurement Laser diameter control gauge
2). Accuracy: 0.001
3). Measurement & control
4). Can be used with PLC
5). Model LDM-25. diameter measuring range is from 0.1-20mm
     Model LDM-50. diameter measuring range is from 0.2-45mm

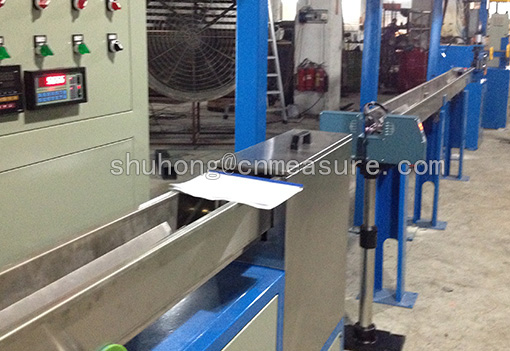

Non-contact measurement Laser diameter control gauge is the high-accuracy installment that uses the laser scan to carry on the no-contacts on-line measurement. It is mainly used in measuring of outer diameter and adjusting the extruder screw or traction speed, to control the outside diameter. It is applicable to measure and control the diameter of metal wires, glass, pipes, wire and cable, etc.
It can also be applied to the outer diameter of workpiece and size measurements.

1.  Technical parameters
  Model        Measuring Range     Resolution      Accuracy
 LDM-25          0.1-20mm              0.001            0.001mm
 LDM-50          0.2-45mm              0.001            0.002mm

2.  The performance indicators
Measurement: Laser scanning
Laser: Visible red semiconductor laser
Laser output power: <2mW
Operating voltage: ~ 220V plus/minus 15%  50 - 60Hz
Operating temperature: -10 ~ 40 Degrees Celsius
Humidity: <85% RH
Work mode: continuous
Power consumption: <30W
Dimensions:
LDM25/LDM50 Gauge head: 461mm(length) * 80mm(wide) * 200mm(high)
Stand size: 350mm * 200mm * (700-1000)mm
Center high of the measuring position is 900-1200mm
Stand height can be adjusted.

3.  Display Controller (Model:DDC-5)
1).  It be used to remote display and control.
2).  Applicable to DC motors, VVVF motor.
3).  The controller can control the speed of extruder or the tractor according to the diameter tolerance.
4).  Can simultaneously measure the outside diameter.
Signal distance:  more than 500m
Output voltage: plus/minus 10V
With RS485 It can connect to PLC industry controlling computer
The PROFIBUS-DP or MODBUS
Can be selected.
External dimensions: 100mm * 100mm * 120mm (Model:DDC-5)
Installation hole size: 90mm * 90mm (Model: DDC-5)

Min.Order Quantity: 1 Piece/Pieces
Payment Terms: T/T,  Paypal
Packaging Detail: Carton
Delivery Detail: According to order quantity. Usually, within 3 days

CE Certifications
