Compact Laser Diameter Micrometer LDM2025

LDM1025/LDM2025 series intelligent Laser scan micrometer. Compact laser diameter gauge.

Type	Single Axis laser diameter gauge	Dual Axis laser diameter gauge
Measuring head	LDM1025	LDM2025
Controller	DDC-7202	DDC-7202
Gate Size	25mm	25mm
Measuring Range	0.1 - 20mm	0.1 - 20mm
Min Measured Size	0.1mm	0.1mm
Laser Type	Visual Red Semi-Conductorlaser 660mm	Visual Red Semi-Conductorlaser 660mm
Accuracy	±0.5μm	±0.5μm
Repeatability	0.15μm	0.15μm
Data Collection speed	1400 Times/Sec	800 Times/Sec
Max Scan speed	82m/s	82m/s
Temperature	-10 - 50℃	-10 - 50℃
Humidity	35% - 85%	35% - 85%
Net Weight	1.4Kg	3.0Kg
Dimension	263.5×80×45mm	187×240×50mm
Display Type	4.3 Inch Touch Screen	4.3 Inch Touch Screen
Units of Measurement	mm or inch
Adjustable Resolution	0.0001mm - 0.1mm 0.00001 inch - 0.01 inch
Alarm Relay output	2 NO or NC Terminal
Analog Output	+TOL,-Tol Output PIC Output Control Voltage: 16 bit ± 10V DC Current: 0 - 10 mA ( for Speed Control )
Communication Output	RS485, Ethernet
Output port	2 Ways OC Output
Controller Dimension	190 × 86 × 270mm
Installation Size	164 × 82mm
Panel Installation Size	180 × 66mm
Features	1. Connect up to four sets of single-axis laser diameter gauge or 2-axis laser diameter gauge or two laser-CCD gauge. 2. Display functions: multi-axis measurements. +Tol, -Tol value,etc.

                  Photo 1. LDM2025 Dual axis Measuring head

                 Photo 2. LDM2025 Dual axis Measuring head

                   Photo 3. LDM1025 Single axis Measuring head

        Photo 4. DDC-7202 display controller (4.3 Inch Touch Screen)

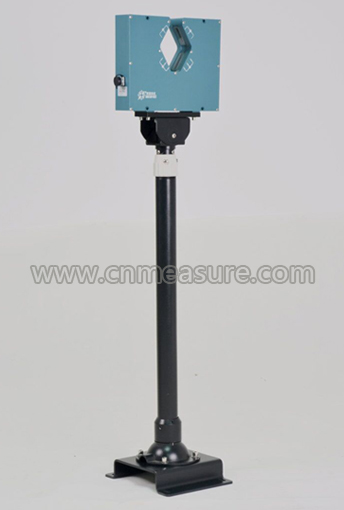

Photo 5. LDM2025 Dual axis device (with Support)

Photo 6. LDM1025 Single axis device (with Support)
